Fluorinated membrane breaks a limit for capturing carbon dioxide

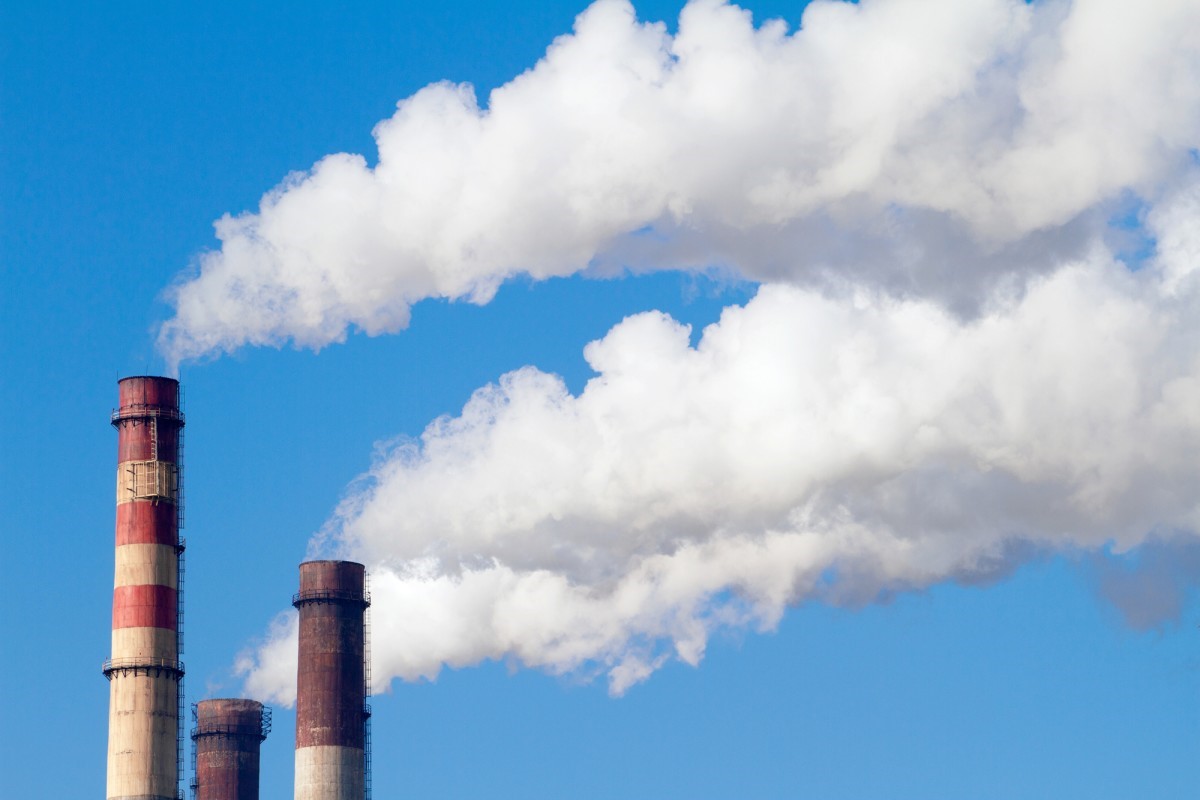

Carbon dioxide is an all too common waste product of industry, belched into the air in huge amounts from smokestacks. Now, researchers have developed a new type of fluorinated membrane that can selectively filter CO₂ out of flue gas at the point of release.

Carbon capture is a promising avenue of research to help slow the march of climate change, preventing greenhouse gases from being released in the first place. To this end, scientists are exploring many different technologies, including clay, bubble-like membranes, ionic liquids, metal-organic frameworks, and porous powders.

The new study, by researchers at Oak Ridge National Laboratory and the University of Tennessee, builds on one of the simplest forms of carbon capture: polymer membranes. These can be stretched across a facility’s chimney where they selectively filter carbon dioxide out of flue gas, while allowing gases like oxygen and nitrogen to escape into the atmosphere.

The secret ingredient of the team’s new membrane is fluorine. This element bonds particularly strongly to carbon, making it an attractive option for carbon capture. The researchers started with a fluorine-based polymer, then heated it to carbonize it. This gives the material a porous structure while maintaining the fluorinated groups, which boosts how much it selects for CO₂.

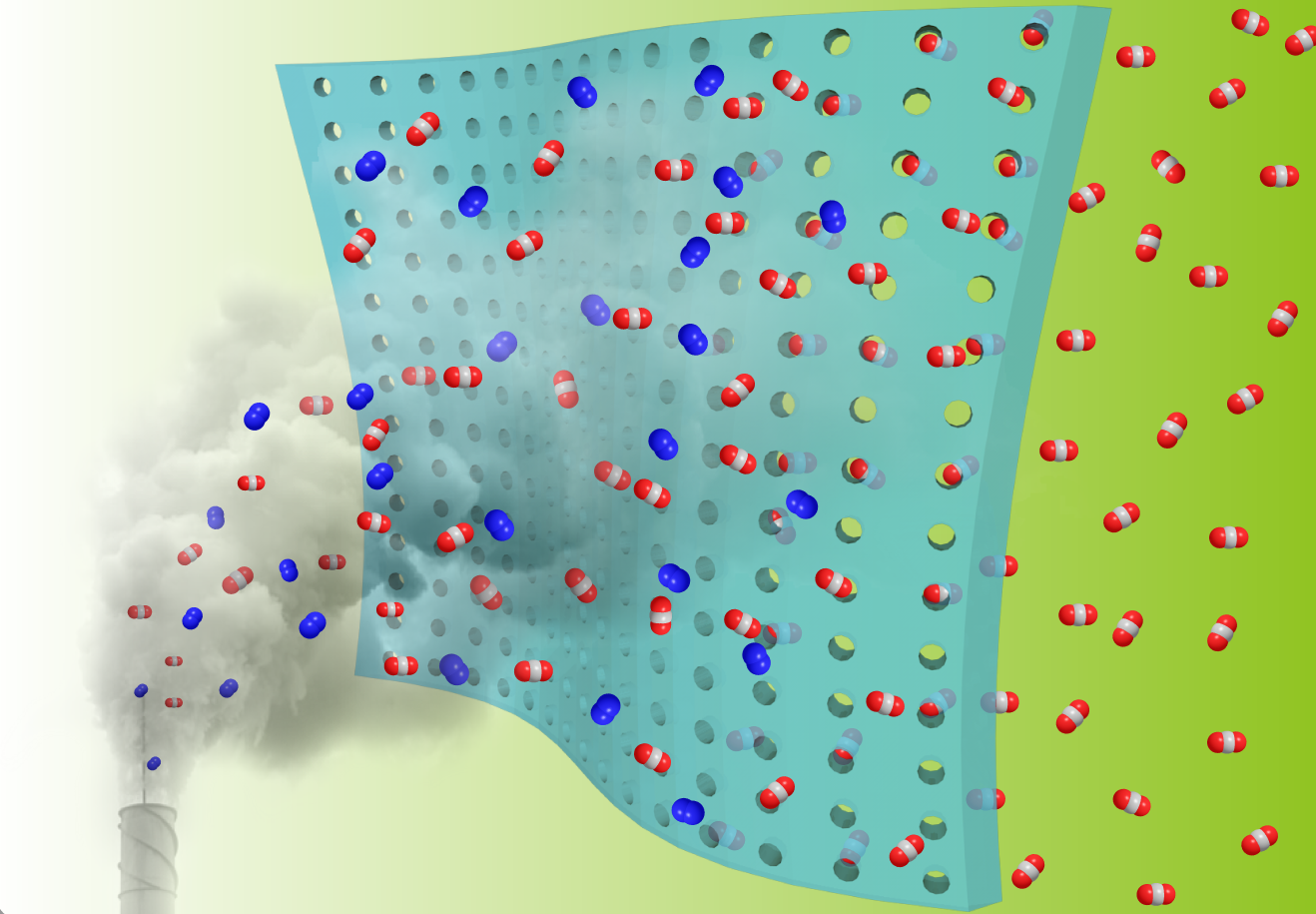

An artist's impression of a fluorine-based membrane that selectively filters out carbon dioxide

Zhenzhen Yang/UT

“The approach resulted in a carbon dioxide-philic material with high surface area and ultra-micropores that is stable in high-temperature operating conditions,” says Zhenzhen Yang, first author of the study. “All of these factors make it a promising candidate for carbon-capture and separation membranes.”

Normally, membranes like this have a trade-off between selectivity for certain gases, and permeability – as one goes up, the other goes down. But the team says that the fluorine-based membrane balances the two properties well, breaking what’s known as the Robeson upper limit. Few materials have achieved this, the team says.

Better yet, fluorine and the other starting materials are abundant and inexpensive, and the process to make them is simple, which will help in scaling up.

In future work, the team plans to further investigate the mechanism for fluorine’s CO₂ selectivity, and try to improve the recipe further.

The research was published in the journal Chem.
