Tesla is working on technology to revolutionize the electrical grid with distributed solar power

Tesla is working on technology for “a scalable hierarchical energy distribution grid” that could revolutionize how the electrical grid distributes solar power.

To date, Tesla’s energy division, Tesla Energy, mostly involved deploying distributed solar power and energy storage assets.

But last year, CEO Elon Musk said that “Tesla Energy is becoming a distributed global utility and could outgrow the automotive business“:

Tesla Energy is going to be a major part of Tesla’s activity in the future. And Tesla’s mission from the beginning has been to accelerate the advent of sustainable energy — that means sustainable energy generation and sustainable energy consumption in the form of electric vehicles.

Tesla plans to optimize all the solar and energy assets that it is installing at its customers’ homes in order to get as much value for them and the electric grid.

In a new patent application, Tesla describes the problem:

Despite the advantages associated with integrating grid-connected PV energy generation with onsite energy storage, there are a number of challenges that make it difficult to efficiently deploy and control such integrated systems, particularly on a large, distributed scale. For example, it is tremendously difficult to attempt to control large numbers of energy generation and/or storage systems installed at various sites (in various geographic locations) utilizing differing device types that may have different capabilities, differing grid requirements, differing weather conditions, differing energy pricing schemes, etc.

They explain that “there is a need for efficient, intelligent, adaptive control systems for energy generation and/or storage systems.”

In the new patent application, Tesla describes its new technology for “a scalable hierarchical energy distribution grid utilizing homogeneous control logic”:

Techniques are disclosed for implementing a scalable hierarchical energy distribution grid utilizing homogeneous control logic are disclosed that provide distributed, autonomous control of a multitude of sites in an energy system using abstraction and aggregation techniques. A hierarchical energy distribution grid utilizing homogeneous control logic is provided that includes multiple control modules arranged in a hierarchy. Each control module can implement a same energy optimization scheme logic to directly control site energy resources and possibly energy resources of sites associated with control modules existing below it in the hierarchy. Each control module can act autonomously through use a similar set of input values to the common optimization scheme logic.

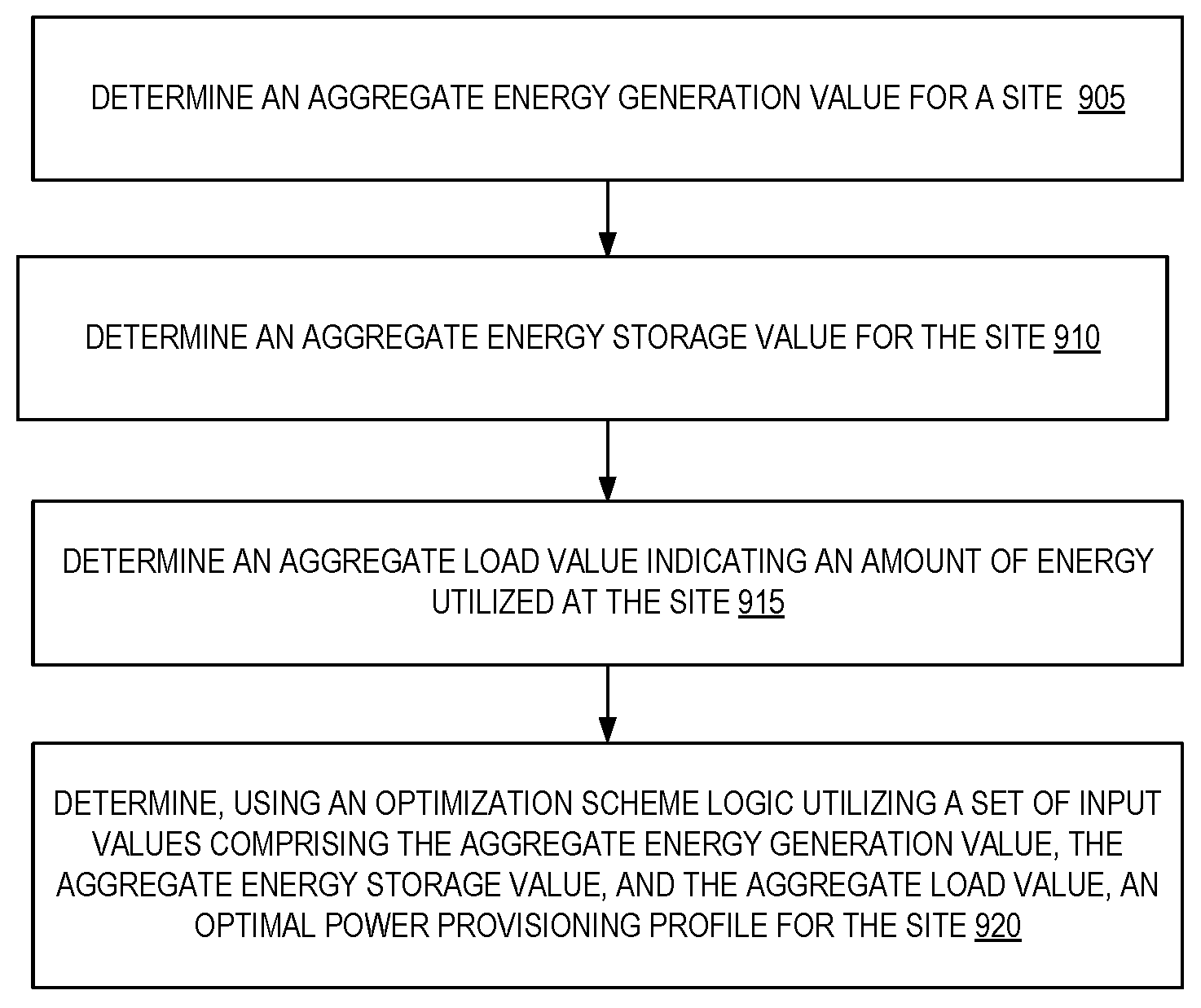

Here’s the logic behind the patent:

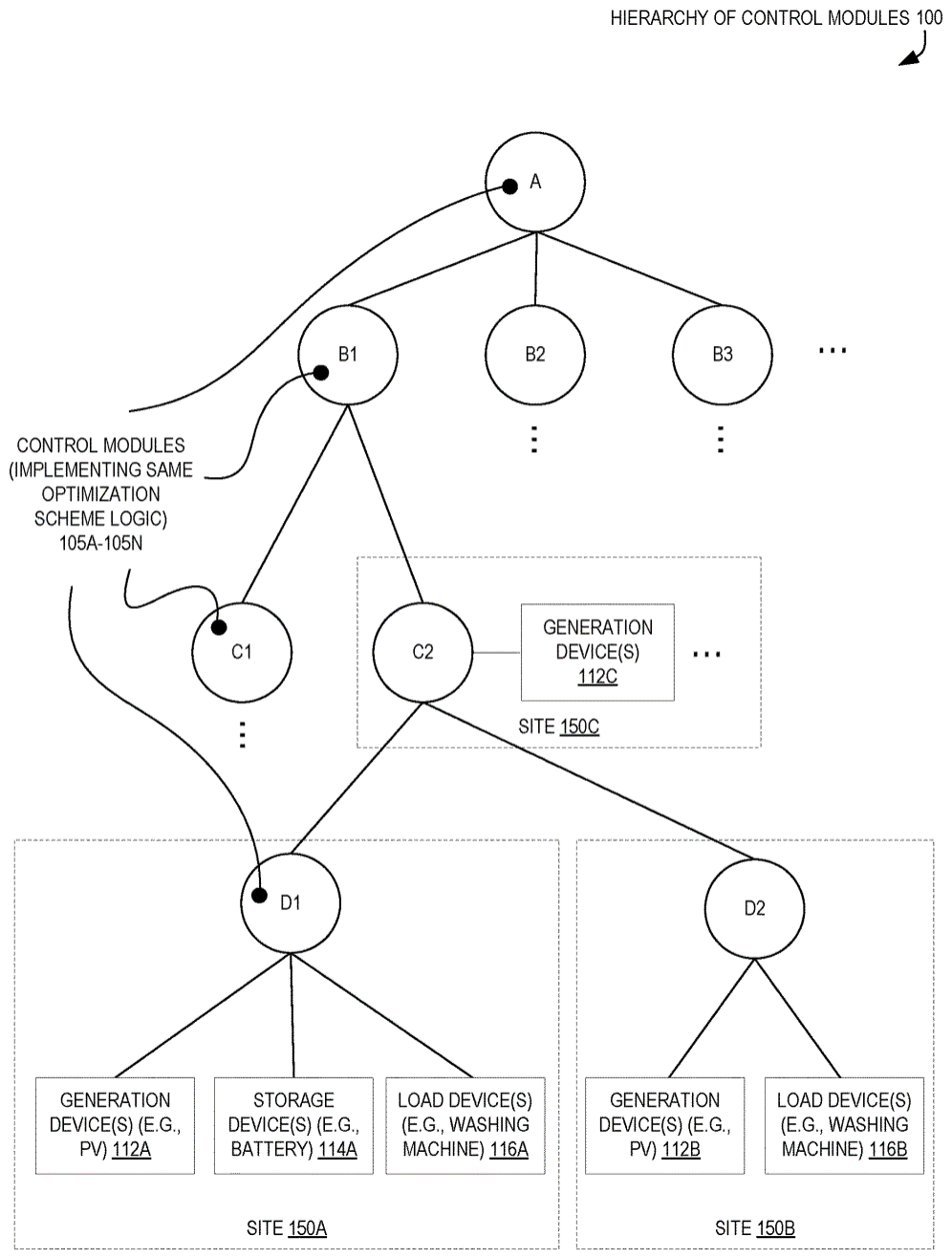

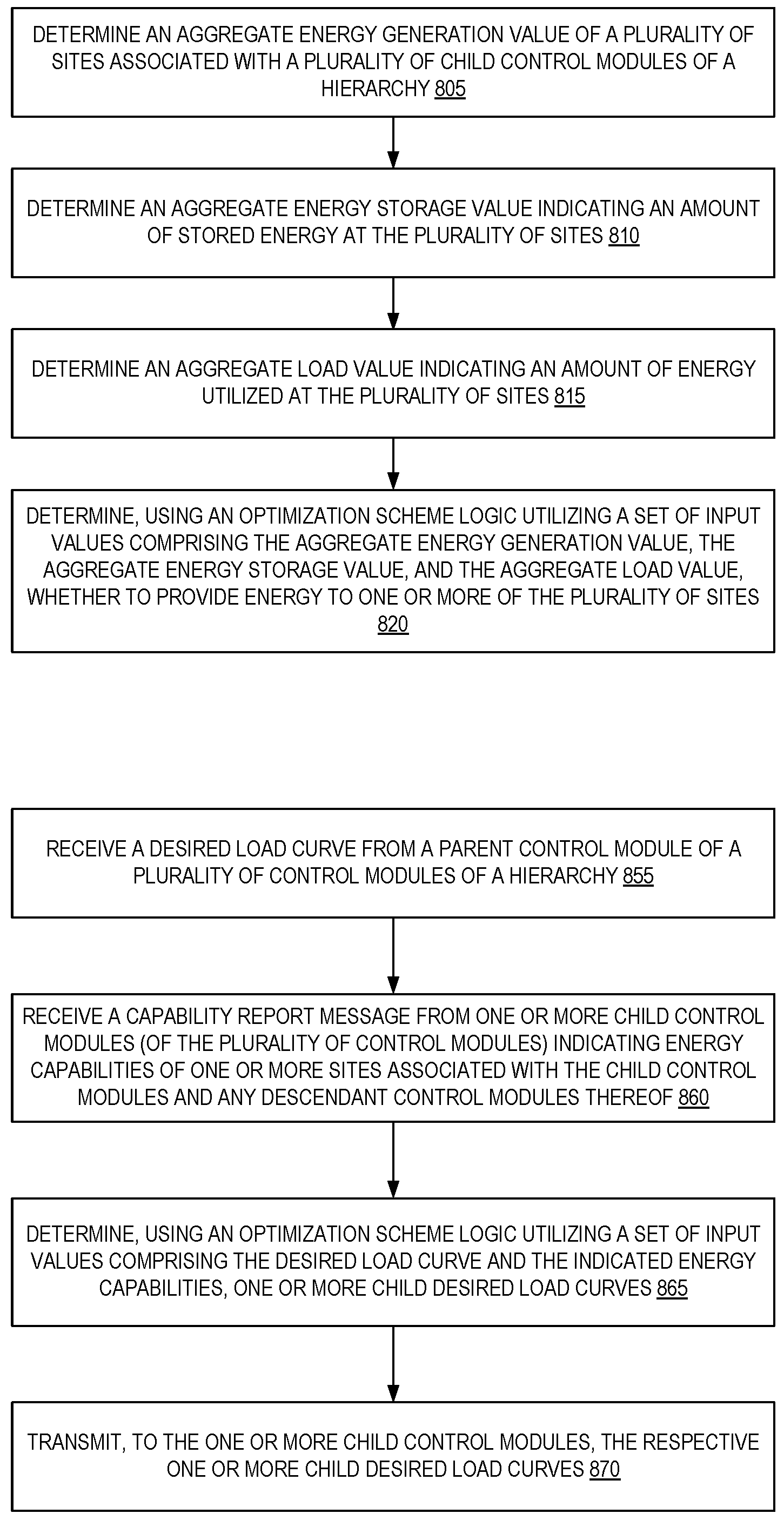

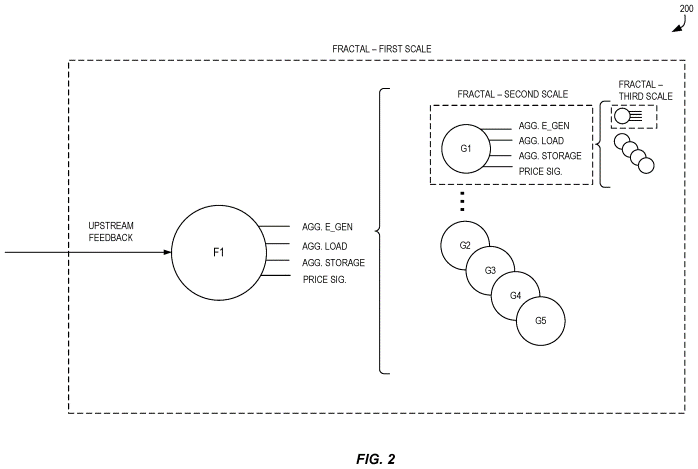

Here are a few drawings from the patent application explaining the technology:

You can see the Tesla’s full patent application here.
